| Type |

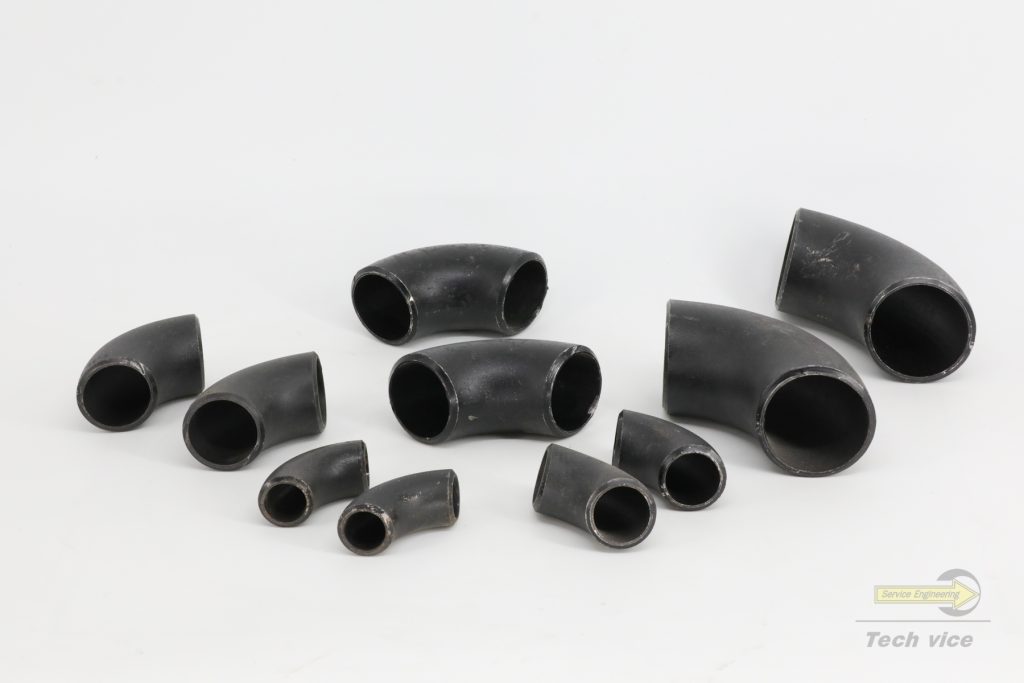

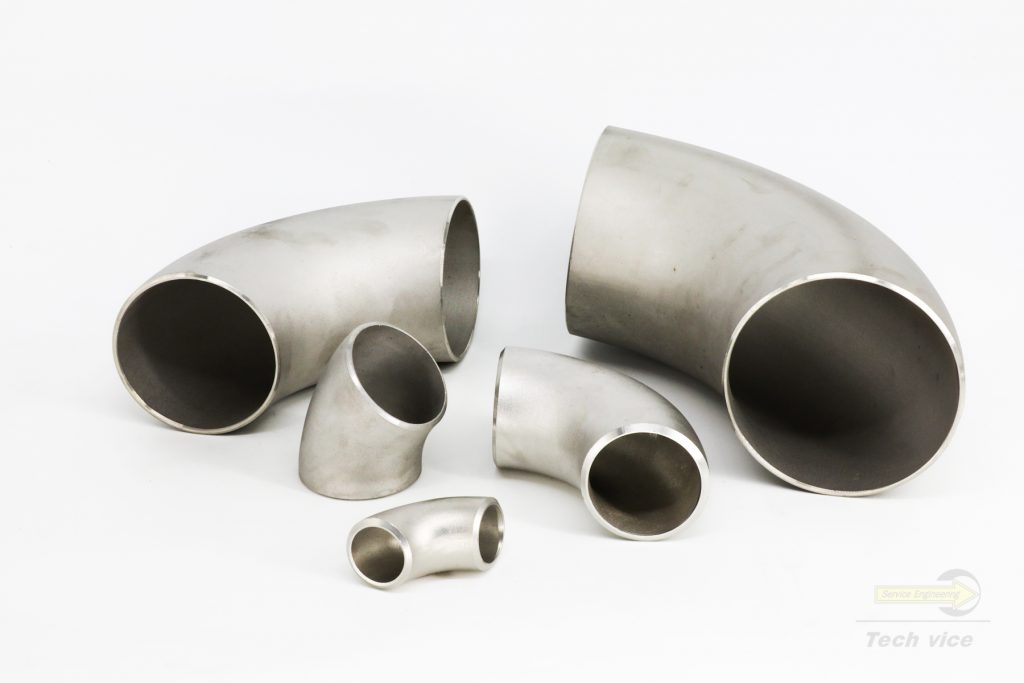

- Short Radius (SR) / Long Radius (LR) 45°, 90°, 180° Elbows or 3R Elbows

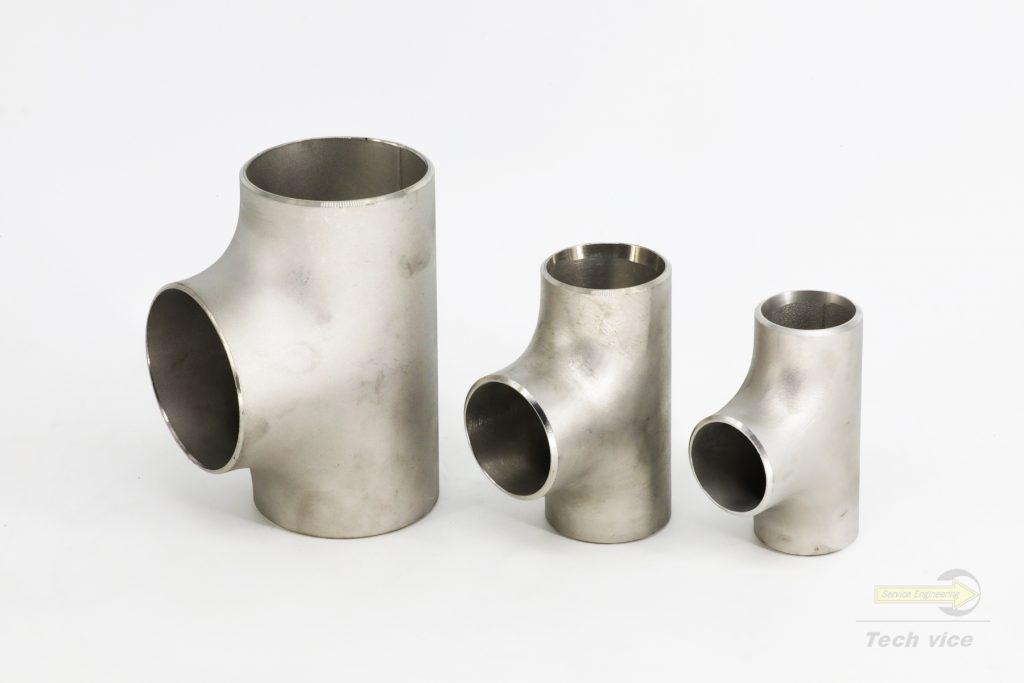

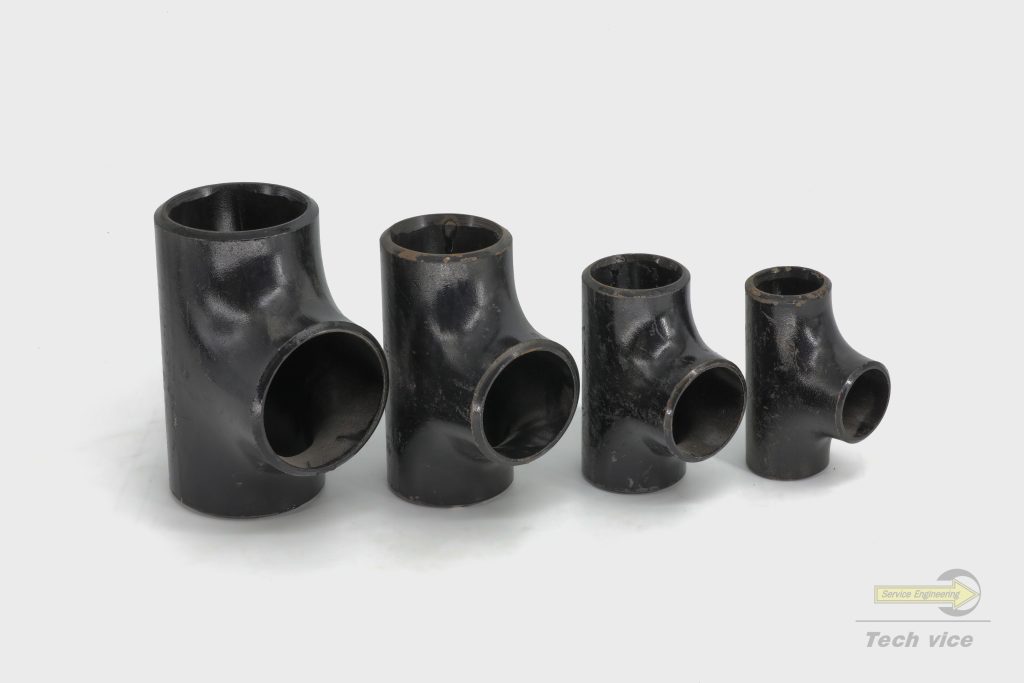

- Cross / Reducing Tees
- Caps

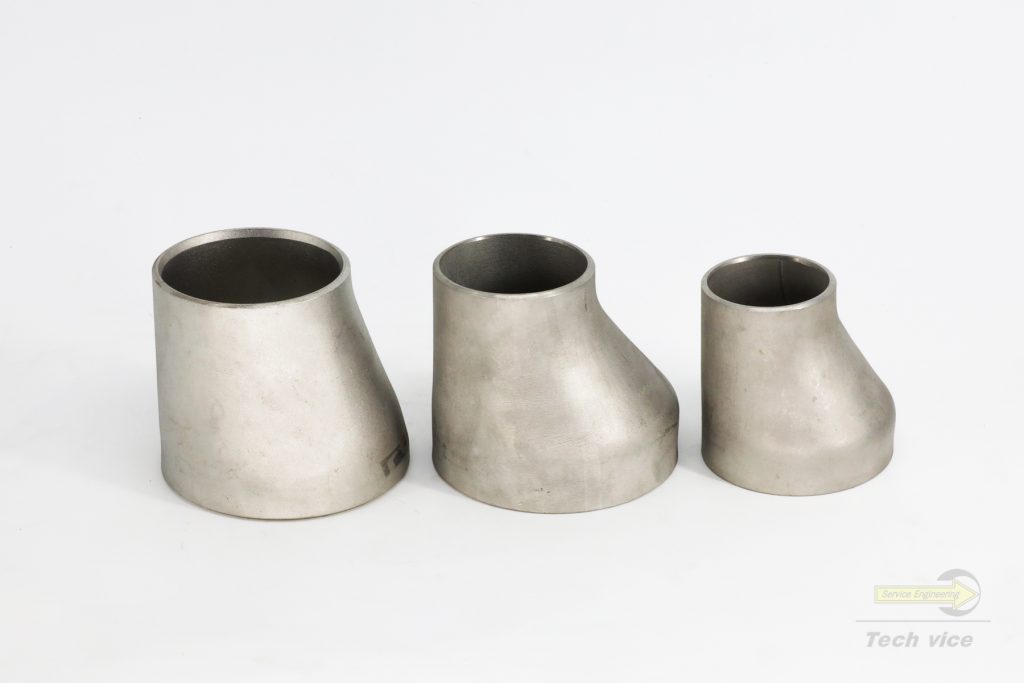

- Concentric / Eccentric Reducers

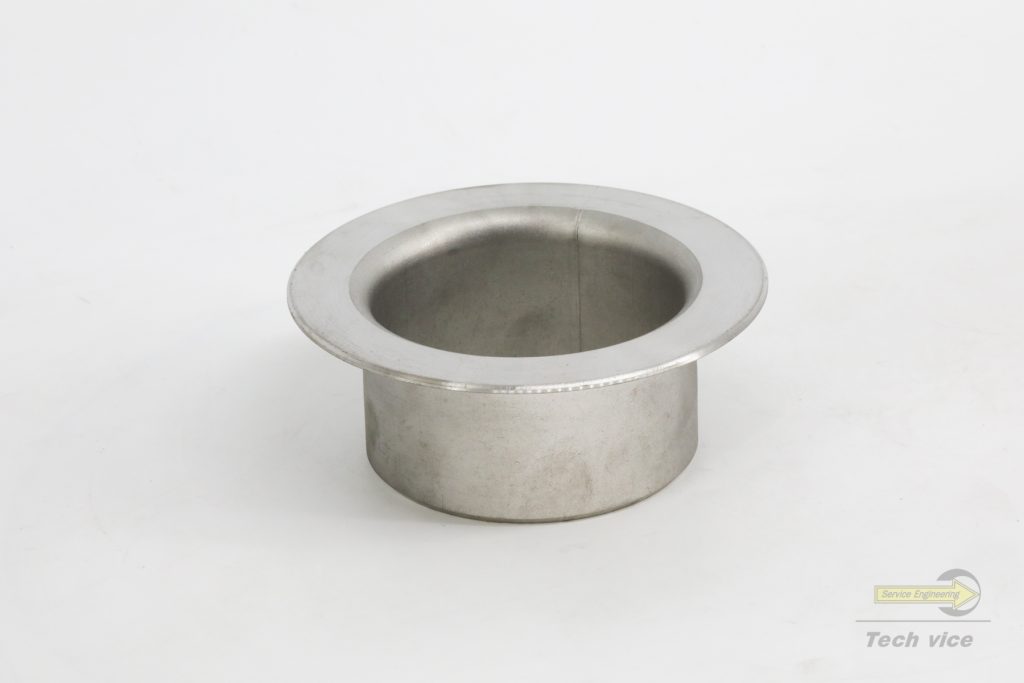

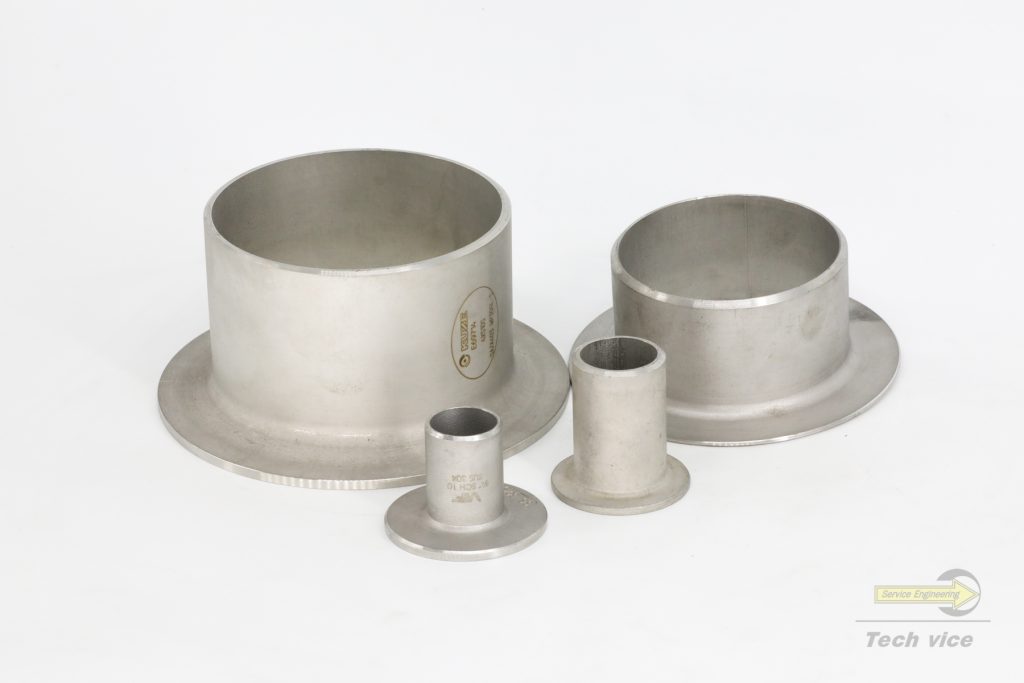

- Stub Ends
|
|
| Material Grade |
| Carbon Steel / Stainless Steel 304, 304L and 316, 316L / Alloy Steel / High-yield material |
| Material Spec. |
- ASTM A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, Y-70
- MSS-SP-75 WPHY-42/46/52/56/60/65/70
- ASTM A403, ASTM A312, WP304/304L/316/316L
- ASTM A182 F11, F12, F304/304L, F316/316L
- ASTM A240, A312, A-350 LF1&2
- ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91
|
| Standard |
| ANSI B16.9 / ANSI B36.10, B36.19 / DIN2615 / JIS B2312 |
| Size (inch) |
Thickness/Schedule (SCH) |
| ½ – 72 |
10, 20, 40, 60, 80, 160, STD, XS, XXS |
| Pressure Class |
| 150, 300, 600, 900, 1500, 2500 |
