| Type |

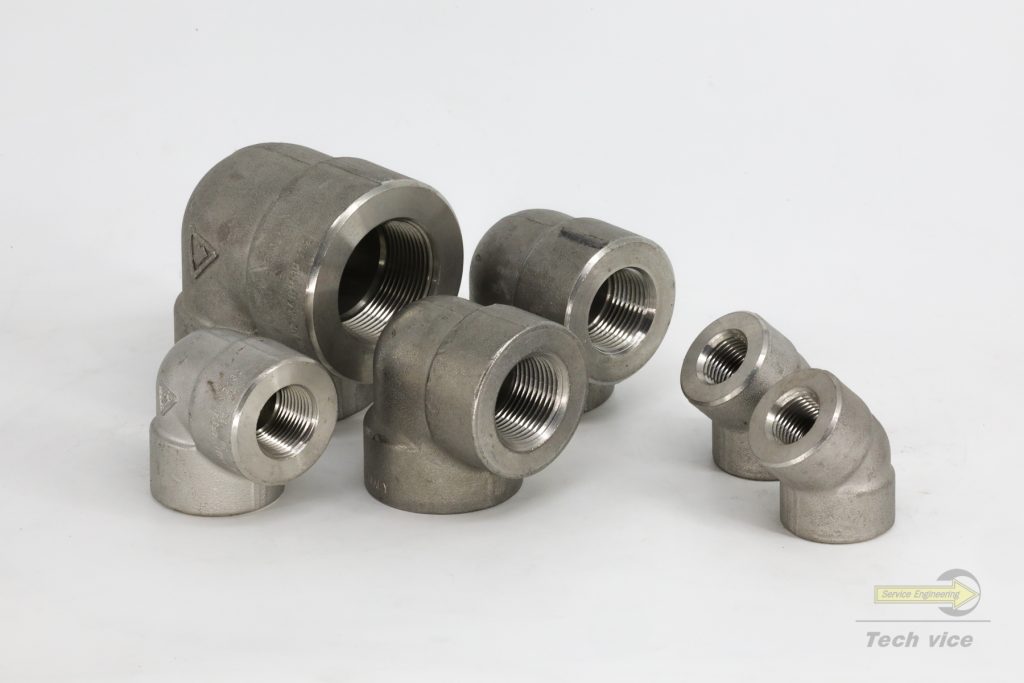

Elbows

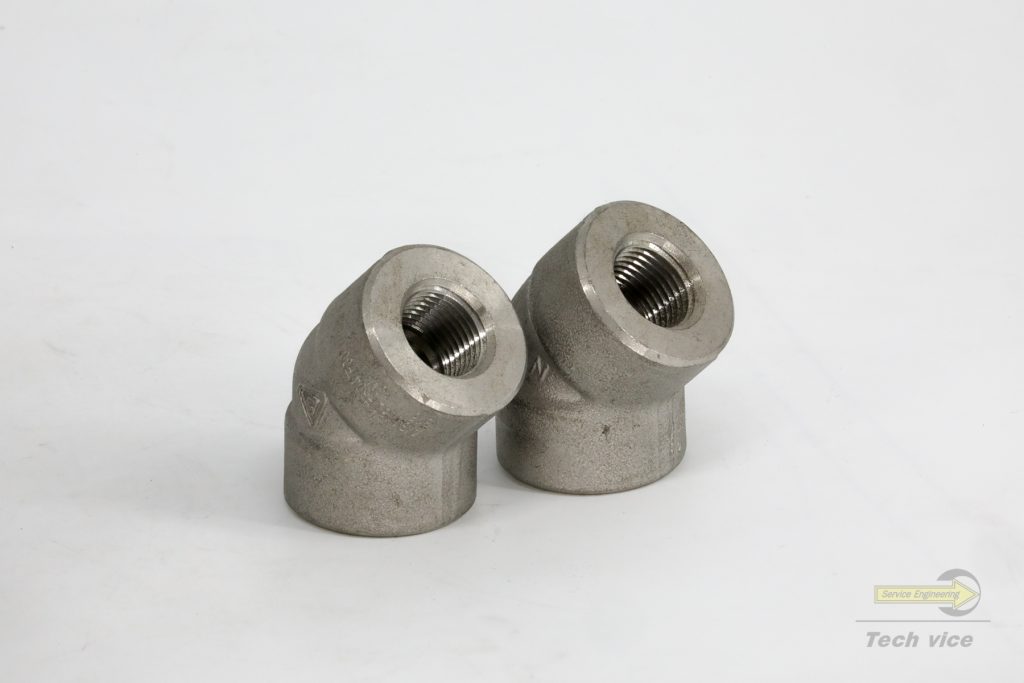

- 45° Elbow</span
- 90° Elbow
- Street Elbow
|

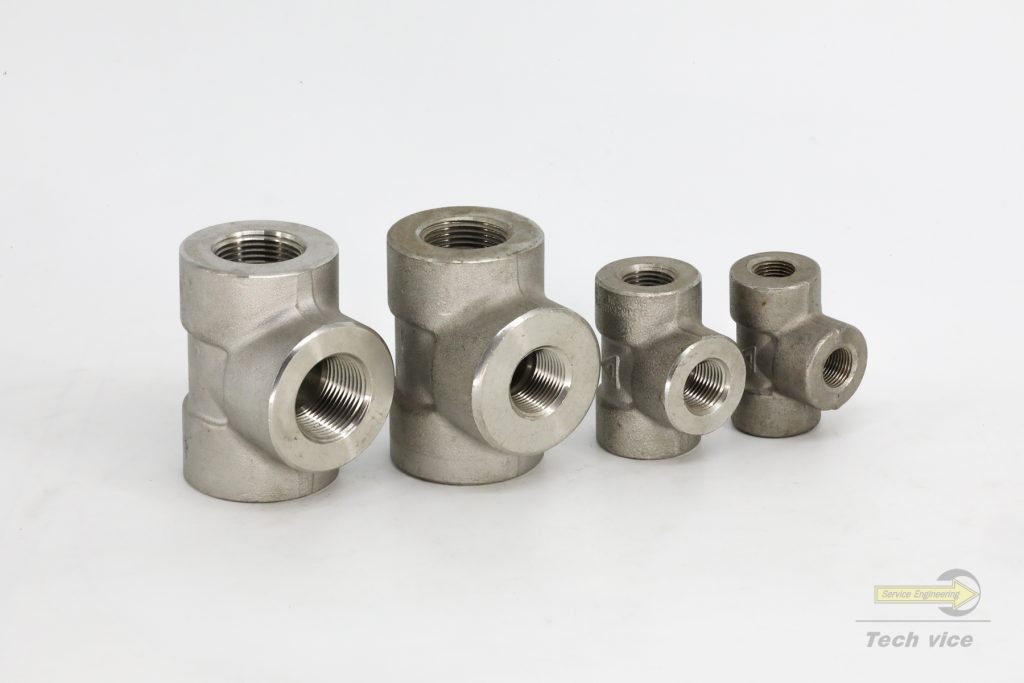

| Tees |
Reducers
- Concentric Reducer
- Eccentric Reducer
|

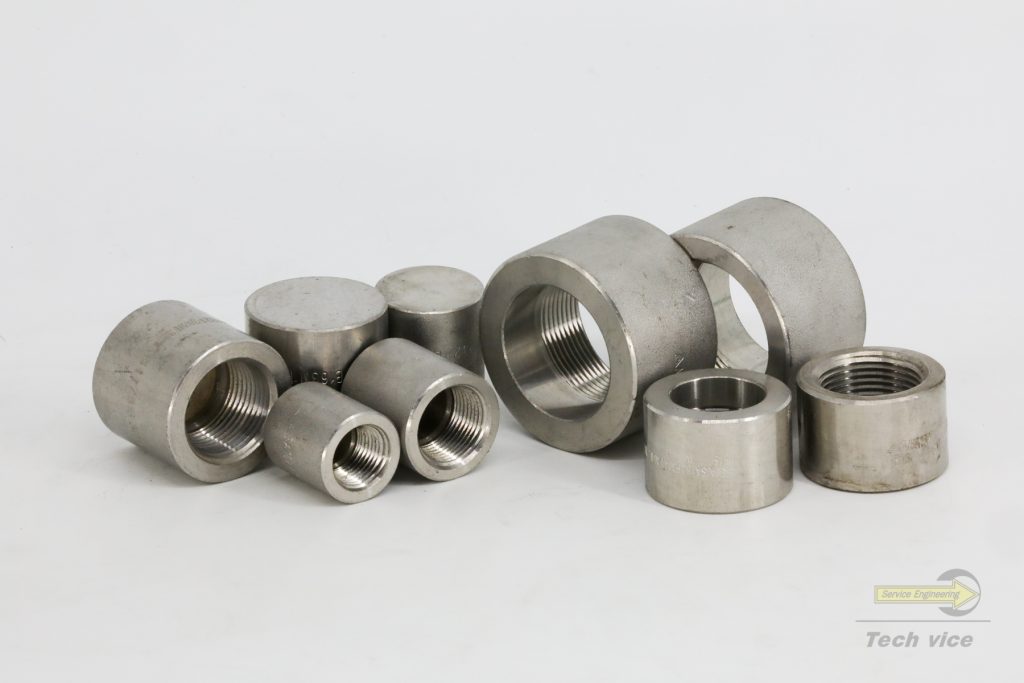

Couplings
- Full-Coupling
- Half-Coupling
- Reducing Coupling
|
| Crosses |

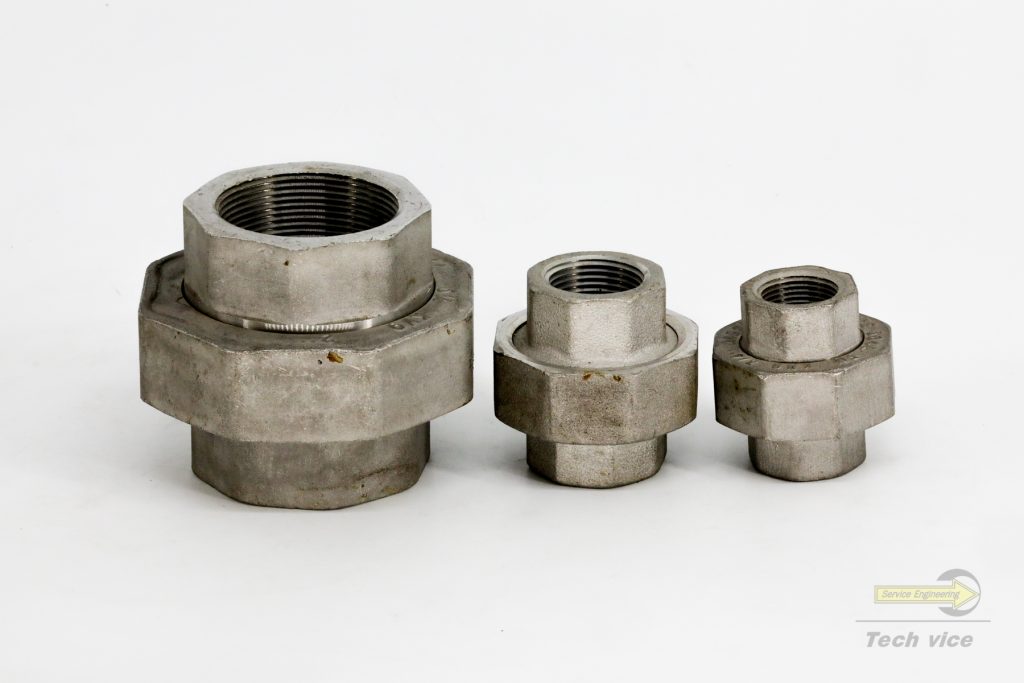

| Unions |
| Caps |
| SQUARE HEAD PLUG / HEX HEAD PLUG / ROUND HEAD PLUG / HEX HEAD BUSHING |
| Connector |

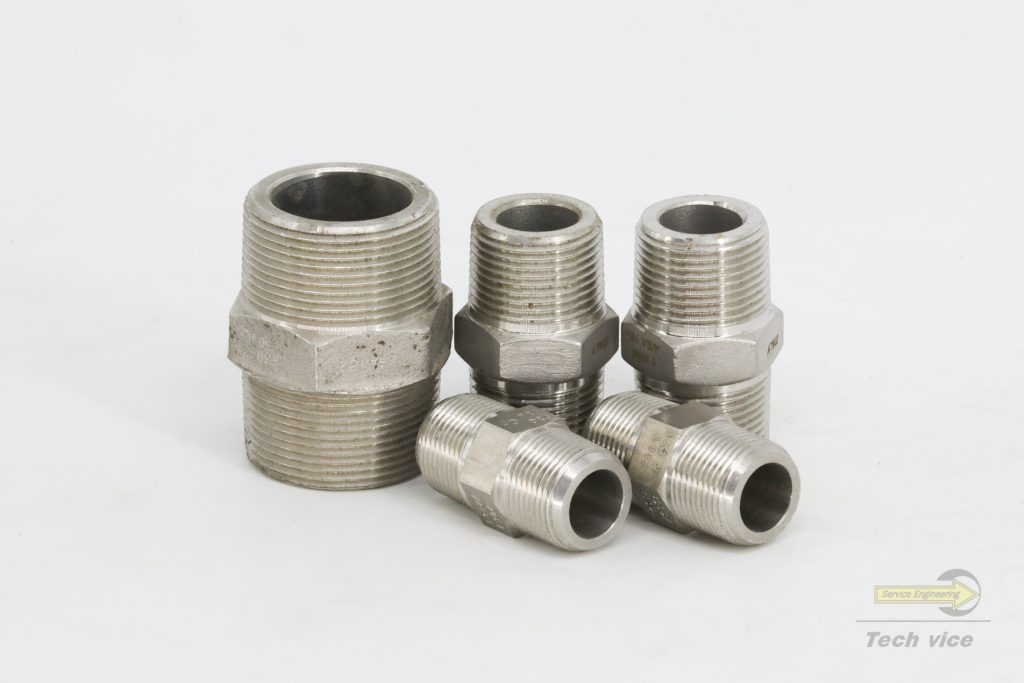

| MALE / FEMALE / FERRLE / NIPPLE |
| Material Grade |
| Stainless Steel 304, 316, Duplex / Carbon Steel A105, A105 / Alloy Steel / Malleable Iron |
| Material Spec. |
- ASTM A105, ASTM A350 LF1/2/3/6
- MSS SP 79, MSS SP 83, MSS SP 95
- ASTM A403, ASTM A312, WP304/304L/316/316L
- ASTM A182 F11, F12, F304/304L, F316/316L
- ASTM A240, A312, A-350 LF1&2
- ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91
|
| Standard |
| ASME B16.11 |
| Size (inch) |
Thickness/Schedule (SCH) |
| 1/8 – 4 (NPS ≤2) |
80, 160, XXS |
| Pressure Class |
| *150, *300, 2000, 3000, 6000, 9000 |
